使用 Dropwizard、MongoDB 和 Docker 构建微服务

由 Mux 主办的 DEV 全球展示挑战赛：展示你的项目！

Dropwizard 施展魔法。😎

在本教程中，我将使用 Dropwizard 创建一个微服务。Dropwizard 框架提供了构建 Web 应用程序所需的各种库。其中包括以下一些库：

Jetty 服务器：这是一个开源的 Web 服务器，轻量级且易于嵌入任何应用程序。

Jersey：用于创建 RESTful Web 服务的实现。

Jackson：允许您在 JSON 对象和 POJO 之间进行操作，反之亦然。

指标：提供有关 HTTP 请求、数据库连接、队列等状态的信息。

Guava：提供多种类来处理集合、验证、字符串等。

Hibernate Validator：将验证作为 Java 对象的约束。

JDBI：封装了 JDBC，并提供了一种灵活的方式来操作关系数据库。

Liquibase：非常适合数据库迁移和 DDL 更改。

MongoDB 是一款 NoSQL 数据库，功能远不止于此。🌳

这种面向文档（以 JSON 等文档形式）的 NoSQL 数据库结合了关系数据库的一些特性，易于使用，并且是多平台的，是扩展、容错、负载均衡、MapReduce 等的最佳选择。

此微服务中使用的技术📝

  • OpenJDK 8
  • Docker 2.0.0.0-mac81（Mac 版本）
  • MongoDB 4.0
  • Maven 3.5
  • Mac OS Mojave（或其他类似 Windows 或 Linux 的系统）
  • Nginx 1.15
  • IntelliJ IDEA 2018

好的，我们开始创建项目。Dropwizard 提供了一个 Maven 原型，我们可以从其网站上使用，以下是该命令的示例：

mvn archetype:generate -DarchetypeGroupId=io.dropwizard.archetypes -DarchetypeArtifactId=java-simple -DarchetypeVersion=1.3.5 -DgroupId=com.demo -DartifactId=dropwizard-mongodb-ms -Dversion=1.0.0-SNAPSHOT -Dname=DropwizardMongoDBMicroservice
Enter fullscreen mode Exit fullscreen mode

打开终端，在命令前粘贴内容，确保已安装并配置 Maven 和 Java。

最终结构如下：

dropwizard-mongodb-ms/
├── README.md
├── config.yml
├── pom.xml
└── src
    ├── main
    │   ├── java
    │   │   └── com
    │   │       └── demo
    │   │           ├── DropwizardMongoDBMicroserviceApplication.java
    │   │           ├── DropwizardMongoDBMicroserviceConfiguration.java
    │   │           ├── api
    │   │           ├── cli
    │   │           ├── client
    │   │           ├── core
    │   │           ├── db
    │   │           ├── health
    │   │           └── resources
    │   └── resources
    │       ├── assets
    │       └── banner.txt
    └── test
        ├── java
        │   └── com
        │       └── demo
        │           ├── api
        │           ├── client
        │           ├── core
        │           ├── db
        │           └── resources
        └── resources
            └── fixtures
Enter fullscreen mode Exit fullscreen mode

项目创建完成后，在pom.xml文件中添加依赖项：

. . .
<properties>
        <dropwizard.version>1.3.5</dropwizard.version>
        <mainClass>com.demo.DropwizardMongoDBMicroserviceApplication</mainClass>
        <mongodb.version>3.8.2</mongodb.version>
        <jdk.version>1.8</jdk.version>
        <dropwizard.swagger.version>1.0.6-1</dropwizard.swagger.version>
        <mockito.core.version>2.23.0</mockito.core.version>
</properties>
. . .
<dependency>
    <groupId>io.dropwizard</groupId>
    <artifactId>dropwizard-core</artifactId>
</dependency>
<dependency>
    <groupId>org.mongodb</groupId>
    <artifactId>mongodb-driver-sync</artifactId>
    <version>${mongodb.version}</version>
</dependency>

<dependency>
    <groupId>com.smoketurner</groupId>
    <artifactId>dropwizard-swagger</artifactId>
    <version>${dropwizard.swagger.version}</version>
</dependency>

<!-- Testing -->
<dependency>
    <groupId>io.dropwizard</groupId>
    <artifactId>dropwizard-testing</artifactId>
    <scope>test</scope>
</dependency>

<dependency>
    <groupId>org.mockito</groupId>
    <artifactId>mockito-core</artifactId>
    <version>${mockito.core.version}</version>
    <scope>test</scope>
</dependency>
<!-- Testing -->
. . .
Enter fullscreen mode Exit fullscreen mode

我在文件中添加了一些配置configuration.yaml，如下所示：

server:
  maxThreads: 512
  applicationContextPath: /dropwizard-mongodb-ms
  applicationConnectors:
    - type: http
      port: 8080
  adminConnectors:
    - type: http
      port: 8081

logging:
  level: INFO
  loggers:
    com.demo: INFO

#You can choose the user and password what you want.
mongoDBConnection:
  credentials:
    username: "user_donuts"
    password: "pAsw0Rd"
  seeds:
    - host: "mongodb"
      port: 27017
  database: "donuts"

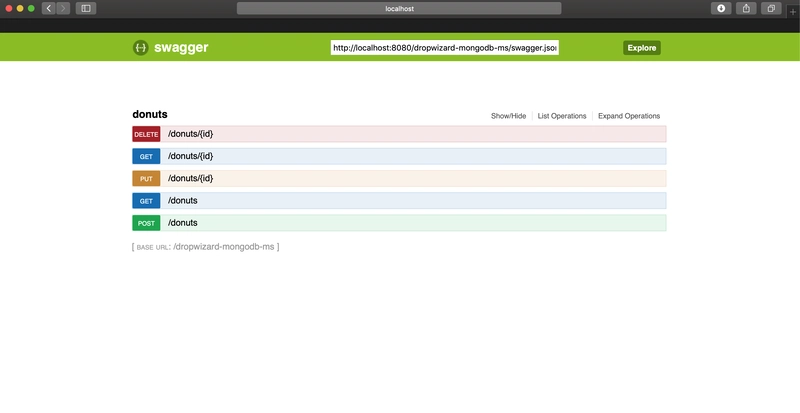

swagger:
  basePath: /dropwizard-mongodb-ms
  resourcePackage: com.demo.resources
  scan: true
  info:
    version: "1.0.0"
    title: "Donuts API CRUD"
    description: "A simple API used for expose CRUD operation on MongoDB collection"
    termsOfService: "http://swagger.io/terms/"
    contact:
      name: "Donuts API "
    license:
      name: "Rich"
Enter fullscreen mode Exit fullscreen mode

configuration.yml 文件映射到一个继承自某个类的类，io.dropwizard.Configuration其内容如下所示：

package com.demo;

import com.demo.db.configuration.MongoDBConnection;
import com.fasterxml.jackson.annotation.JsonProperty;

import io.dropwizard.Configuration;
import io.federecio.dropwizard.swagger.SwaggerBundleConfiguration;

public class DropwizardMongoDBMicroserviceConfiguration extends Configuration {

    /**
     * The data configuration for MongoDB.
     */

    private MongoDBConnection mongoDBConnection;

    @JsonProperty("swagger")
    private SwaggerBundleConfiguration swaggerBundleConfiguration;

    //Getters and setters
}
Enter fullscreen mode Exit fullscreen mode

这个微服务将基于 CRUD（创建、读取、更新、删除）公开一个 REST API。我选择了一个类似甜甜圈的产品（🍩 🤤），你可以在本教程末尾的我的 Github 存储库中找到部分代码。

我使用com.mongodb.client.MongoCollection名为“用于访问集合的接口”donuts来更精细地控制操作，因此我创建了一个 DAO（数据访问对象）来操作 CRUD 操作。

package com.demo.db.daos;
//imports ...
public class DonutDAO {

    /** The collection of Donuts */
    final MongoCollection<Document> donutCollection;

    /**
     * Constructor.
     *
     * @param donutCollection the collection of donuts.
     */
    public DonutDAO(final MongoCollection<Document> donutCollection) {
        this.donutCollection = donutCollection;
    }

    /**
     * Find all donuts.
     *
     * @return the donuts.
     */
    public List<Donut> getAll() {
        final MongoCursor<Document> donuts = donutCollection.find().iterator();
        final List<Donut> donutsFind = new ArrayList<>();
        try {
            while (donuts.hasNext()) {
                final Document donut = donuts.next();
                donutsFind.add(DonutMapper.map(donut));
            }
        } finally {
            donuts.close();
        }
        return donutsFind;
    }

    /**
     * Get one document find in other case return null.
     *
     * @param id the identifier for find.
     * @return the Donut find.
     */
    public Donut getOne(final ObjectId id) {
        final Optional<Document> donutFind = Optional.ofNullable(donutCollection.find(new Document("_id", id)).first());
        return donutFind.isPresent() ? DonutMapper.map(donutFind.get()) : null;
    }

    public void save(final Donut donut){
        final Document saveDonut = new Document("price", donut.getPrice())
                                      .append("flavor", donut.getFlavor());
        donutCollection.insertOne(saveDonut);
    }

    /**
     * Update a register.
     *
     * @param id the identifier.
     * @param donut the object to update.
     */
    public void update(final ObjectId id, final Donut donut) {
        donutCollection.updateOne(new Document("_id", id),
                new Document("$set", new Document("price", donut.getPrice())
                        .append("flavor", donut.getFlavor()))
        );
    }

    /**
     * Delete a register.
     * @param id    the identifier.
     */
    public void delete(final ObjectId id){
        donutCollection.deleteOne(new Document("_id", id));
    }
Enter fullscreen mode Exit fullscreen mode

为了映射来自数据库的信息，我使用了一个实用程序类，该类将 MongoDB 中的字段过滤到 POJO 中。

package com.demo.util;

import com.demo.api.Donut;
import org.bson.Document;

public class DonutMapper {

    /**
     * Map objects {@link Document} to {@link Donut}.
     *
     * @param donutDocument the information document.
     * @return A object {@link Donut}.
     */
    public static Donut map(final Document donutDocument) {
        final Donut donut = new Donut();
        donut.setId(donutDocument.getObjectId("_id"));
        donut.setFlavor(donutDocument.getString("flavor"));
        donut.setPrice(donutDocument.getDouble("price"));
        return donut;
    }
}
Enter fullscreen mode Exit fullscreen mode

然后创建一个 POJO 来操作 MongoDB 中的信息。

package com.demo.api;
//imports ...
public class Donut implements Serializable {

    /** The id.*/
    @JsonSerialize(using = ObjectIdSerializer.class)
    private ObjectId id;

    /** The price. */
    @NotNull
    private double price;

    /** The principal flavor.*/
    @NotNull
    private String flavor;

    /**Constructor.*/
    public Donut() {
    }

//getters & setters
//hashcode, equals and toString methods
Enter fullscreen mode Exit fullscreen mode

此类仅用于响应端点。

package com.demo.api;
//imports ...
public class Response {
    /** The message.*/
    private String message;

    /** Constructor.*/
    public Response() {
    }
//getters & setters
//hashcode, equals and toString methods
Enter fullscreen mode Exit fullscreen mode

这里还有更多使用 Jackson转换org.bson.types.ObjectId为对象的实用类。String

package com.demo.util;

import java.io.IOException;

import org.bson.types.ObjectId;

import com.fasterxml.jackson.core.JsonGenerator;
import com.fasterxml.jackson.databind.JsonSerializer;
import com.fasterxml.jackson.databind.SerializerProvider;

public class ObjectIdSerializer extends JsonSerializer<ObjectId> {
    @Override
    public void serialize(final ObjectId objectId, final JsonGenerator jsonGenerator,
                          final SerializerProvider serializerProvider) throws IOException {
        jsonGenerator.writeString(objectId.toString());
    }
}
Enter fullscreen mode Exit fullscreen mode

将String对象转换为数组char。

package com.demo.util;

import com.fasterxml.jackson.core.JsonGenerator;
import com.fasterxml.jackson.databind.JsonSerializer;
import com.fasterxml.jackson.databind.SerializerProvider;

import java.io.IOException;

public class PasswordSerializer extends JsonSerializer<String> {
    @Override
    public void serialize(final String input, final JsonGenerator jsonGenerator,
                          final SerializerProvider serializerProvider) throws IOException {
        jsonGenerator.writeString(input.toCharArray(), 0, input.toCharArray().length);
    }

    @Override
    public Class<String> handledType() {
        return String.class;
    }
}
Enter fullscreen mode Exit fullscreen mode

使用这些 POJO 将信息映射到configuration.yml。

package com.demo.db.configuration;

import java.util.Arrays;
import java.util.Objects;

import com.demo.util.PasswordSerializer;
import com.fasterxml.jackson.databind.annotation.JsonSerialize;

/**
 * This class is used for credentials.
 * @version 1.0.0
 * @since 1.0.0
 * @author Rich Lopez
 */
public class Credentials {

    /** The user name.*/
    private String username;

    /** The password.*/
    @JsonSerialize(using = PasswordSerializer.class)
    private char[] password;

    //getters, setters, hashcode and equals methods.
}
Enter fullscreen mode Exit fullscreen mode
package com.demo.db.configuration;

import java.util.Objects;

public class Seed {

    /** The host.*/
    private String host;

    /** The port.*/
    private int port;
    //getters, setters, hashcode and equals methods.
}
Enter fullscreen mode Exit fullscreen mode
package com.demo.db.configuration;

import java.util.List;

public class MongoDBConnection {

    /**
     * The credentials user and password.
     */
    private Credentials credentials;

    /**
     * The lis of seeds.
     */
    private List<Seed> seeds;

    /**
     * The db.
     */
    private String database;
}
Enter fullscreen mode Exit fullscreen mode

为了管理与 MongoDB 的连接，我们需要将来自 yaml 文件配置的信息映射到这些类com.demo.db.configuration.Credentials，，com.demo.db.configuration.MongoDBConnection。com.demo.db.configuration.Seed

该类com.demo.db.MongoDBFactoryConnection使用 YAML 文件中提供的选项创建 MongoDB 客户端，创建实例的方法如下所示：

package com.demo.db;
//imports ...
public class MongoDBFactoryConnection {

    /** The configuration for connect to MongoDB Server.*/
    private MongoDBConnection mongoDBConnection;

    /**
     * Constructor.
     *
     * @param mongoDBConnection the mongoDB connection data.
     */
    public MongoDBFactoryConnection(final MongoDBConnection mongoDBConnection) {
        this.mongoDBConnection = mongoDBConnection;
    }

    /**
     * Gets the connection to MongoDB.
     *
     * @return the mongo Client.
     */
    public MongoClient getClient() {
        LOGGER.info("Creating mongoDB client.");
        final Credentials configCredentials = mongoDBConnection.getCredentials();

        final MongoCredential credentials = MongoCredential.createCredential(
                configCredentials.getUsername(),
                mongoDBConnection.getDatabase(),
                configCredentials.getPassword());

        final MongoClient client = MongoClients.create(
                MongoClientSettings.builder()
                        .credential(credentials)
                        .applyToClusterSettings(builder -> builder.hosts(getServers())).build()
        );

        return client;
    }

    /**
     * Map the object {@link Seed} to objects {@link ServerAddress} that contain the information of servers.
     *
     * @return the list of servers.
     */
    private List<ServerAddress> getServers() {
        final List<Seed> seeds = mongoDBConnection.getSeeds();
        return seeds.stream()
                .map(seed -> {
                    final ServerAddress serverAddress = new ServerAddress(seed.getHost(), seed.getPort());
                    return serverAddress;
                })
                .collect(Collectors.toList());
    }
Enter fullscreen mode Exit fullscreen mode

在 Dropwizard 生命周期中，对象可以通过接口io.dropwizard.lifecycle.Managed和类进行管理io.dropwizard.lifecycle.MongoDBManaged。

package com.demo.db;
//imports ...
public class MongoDBManaged implements Managed {

    /** The mongoDB client.*/
    private MongoClient mongoClient;

    /**
     * Constructor.
     * @param mongoClient   the mongoDB client.
     */
    public MongoDBManaged(final MongoClient mongoClient) {
        this.mongoClient = mongoClient;
    }

    @Override
    public void start() throws Exception {
    }

    @Override
    public void stop() throws Exception {
        mongoClient.close();
    }
Enter fullscreen mode Exit fullscreen mode

另一个重要的类是 Healthcheck，创建此类只需要继承com.codahale.metrics.health.HealthCheck并实现该方法即可check。

package com.demo.health;
//imports ...
public class DropwizardMongoDBHealthCheck extends HealthCheck {
     /** A client of MongoDB.*/
    private MongoClient mongoClient;

    /**
     * Constructor.
     *
     * @param mongoClient the mongo client.
     */
    public DropwizardMongoDBHealthCheck(final MongoClient mongoClient) {
        this.mongoClient = mongoClient;
    }
    @Override
    protected Result check() {
        try {
            final Document document = mongoClient.getDatabase("donuts").runCommand(new Document("buildInfo", 1));
            if (document == null) {
                return Result.unhealthy("Can not perform operation buildInfo in Database.");
            }
        } catch (final Exception e) {
            return Result.unhealthy("Can not get the information from database.");
        }
        return Result.healthy();
    }
Enter fullscreen mode Exit fullscreen mode

该微服务的入口点是加载com.demo.DropwizardMongoDBMicroserviceApplication所有捆绑包配置、初始化类等的类。此类必须继承自某个类，io.dropwizard.Application并且由该类的一个子类进行参数化io.dropwizard.Configuration。

package com.demo;

import com.demo.db.MongoDBFactoryConnection;
import com.demo.db.daos.DonutDAO;
import com.demo.db.MongoDBManaged;
import com.demo.health.DropwizardMongoDBHealthCheck;
import com.demo.resources.DonutResource;

import io.dropwizard.Application;
import io.dropwizard.setup.Bootstrap;
import io.dropwizard.setup.Environment;
import io.federecio.dropwizard.swagger.SwaggerBundle;
import io.federecio.dropwizard.swagger.SwaggerBundleConfiguration;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class DropwizardMongoDBMicroserviceApplication extends Application<DropwizardMongoDBMicroserviceConfiguration> {

    /**
     * Logger class.
     */
    private static final Logger LOGGER = LoggerFactory.getLogger(DropwizardMongoDBMicroserviceApplication.class);

    /**
     * Entry point for start Application.
     *
     * @param args the args.
     * @throws Exception when the app can not start.
     */
    public static void main(final String[] args) throws Exception {
        LOGGER.info("Start application.");
        new DropwizardMongoDBMicroserviceApplication().run(args);
    }

    @Override
    public String getName() {
        return "DropwizardMongoDBMicroservice";
    }

    @Override
    public void initialize(final Bootstrap<DropwizardMongoDBMicroserviceConfiguration> bootstrap) {
        bootstrap.addBundle(new SwaggerBundle<DropwizardMongoDBMicroserviceConfiguration>() {
            @Override
            protected SwaggerBundleConfiguration getSwaggerBundleConfiguration(
                        final DropwizardMongoDBMicroserviceConfiguration dropwizardMongoDBMicroserviceConfiguration) {
                return dropwizardMongoDBMicroserviceConfiguration.getSwaggerBundleConfiguration();
            }
        });
    }

    @Override
    public void run(final DropwizardMongoDBMicroserviceConfiguration configuration,
                    final Environment environment) {

        final MongoDBFactoryConnection mongoDBManagerConn = new MongoDBFactoryConnection(configuration.getMongoDBConnection());

        final MongoDBManaged mongoDBManaged = new MongoDBManaged(mongoDBManagerConn.getClient());

        final DonutDAO donutDAO = new DonutDAO(mongoDBManagerConn.getClient()
                .getDatabase(configuration.getMongoDBConnection().getDatabase())
                .getCollection("donuts"));

        environment.lifecycle().manage(mongoDBManaged);
        environment.jersey().register(new DonutResource(donutDAO));
        environment.healthChecks().register("DropwizardMongoDBHealthCheck",
                new DropwizardMongoDBHealthCheck(mongoDBManagerConn.getClient()));
    }
}
Enter fullscreen mode Exit fullscreen mode

请使用以下命令构建项目：

$ mvn clean package

在启动应用程序之前，需要有数据库，对于 MongoDB，您可以从网站下载，或者使用 DockerHub 中的 docker 镜像。

下载完 MongoDB 镜像后，启动一个新的容器：

$ docker run --name mongodb -d -p 27017:27017 mongo

注意：务必创建卷以保持信息的持久性。

进入容器并输入以下命令：

$ docker exec -it [container name or id] /bin/bash
$ mongo
$ use donuts
> db.createUser({ user: "user_donuts", pwd: "pAsw0Rd", roles: [ { role: "readWrite", db: "donuts"} ]});

默认情况下，MongoDB 将身份验证机制设置为 SCRAM。

现在使用以下命令启动应用程序：

$ java -jar target/dropwizard-mongodb-ms-1.0.0-SNAPSHOT.jar server configuration.yml

创建完用户和数据库后，我们就可以在以下 URL 中输入 Swagger 文档：

http://localhost:8080/dropwizard-mongodb-ms/swagger

Swagger 文档

使用 Docker Compose 🐳

我们每天使用 Docker 的原因之一是它提供了一个统一的环境，所有开发人员都能保持依赖项、数据库、Web 服务器等的同步。这种简便的构建和部署方式缩短了交付时间。

我使用 Docker 启动应用程序和 MongoDB 服务器，此外，我还添加了Nginx 代理来接收请求。以下是一个 Docker Compose 文件示例：

version: '3'
services:
  mongodb:
    image: mongo
    restart: always
    container_name: mongodb
    environment:
      MONGO_INITDB_ROOT_USERNAME: admin
      MONGO_INITDB_ROOT_PASSWORD: admin
    ports:
      - 27017:27017
    networks:
      - dropw-mongodb-ntw

  nginx:
    image: nginx
    container_name: nginx
    volumes:
    - ./nginx.conf:/etc/nginx/nginx.conf
    ports:
    - "8080:80"
    - "443:443"
    networks:
    - dropw-mongodb-ntw

  dropw-ms:
    image: openjdk:8-jre
    container_name: dropw-ms
    volumes:
    - ./target/dropwizard-mongodb-ms-1.0.0-SNAPSHOT.jar:/microservice/dropwizard-mongodb-ms-1.0.0-SNAPSHOT.jar
    - ./configuration.yml:/microservice/configuration.yml
    working_dir: /microservice
    command: ["java", "-jar", "dropwizard-mongodb-ms-1.0.0-SNAPSHOT.jar", "server", "configuration.yml"]
    ports:
    - "8090:8080"
    - "8091:8081"
    networks:
    - dropw-mongodb-ntw

networks:
  dropw-mongodb-ntw:
    external:
      name: dropw-mongodb-ntw
Enter fullscreen mode Exit fullscreen mode

我们使用以下命令创建 Docker 网络：

docker network create dropw-mongodb-ntw

使用以下命令构建项目：

$ mvn clean package

启动 Docker Compose：

$ docker-compose up

创建完创建数据库用户所需的所有服务后，我们将使用以下命令访问容器。

$ docker exec -it [container name or id] /bin/bash
$ mongo
> use donuts
> db.createUser({ user: "user_donuts", pwd: "pAsw0Rd", roles: [ { role: "readWrite", db: "donuts"} ]});

http://localhost:8080/dropwizard-mongodb-ms/swagger

结论

Dropwizard 为我们提供了多种工具，可以轻松创建微服务。例如，您可以将其与其他技术（如 MongoDB、Docker 和 Nginx）集成。请记住，一切都取决于具体需求和待解决的问题，但对我来说，它非常适合入门和分享经验。

GitHub 仓库：https://github.com/ricdev2/dropwizard-mongodb-ms

文章来源：https://dev.to/ricdev2/building-microservices-with-dropwizard-mongodb--docker--o30
架构决策：好斗的逆向思维和三法则 ...
将 Vue.js 应用部署到 He...
