GraphQL 新手教程 - 速查表 基本输入 带默认值的输入 带多个参数的输入 带多个参数和默认值的输入 联合类型

GraphQL 新手教程 - 速查表

基本输入

输入默认值

带多个参数的输入

输入包含多个参数和默认值

工会

介绍

我是GraphQL 可视化编辑器的创始人之一。这篇博文是面向新手的教程系列的一部分。关注我，获取更多内容并查看其他文章。我已经介绍了 GraphQL 的基础知识、简介和模式定义语言。欢迎评论和提出修改建议。

类型定义

scalar > Scalar type
type > Object type
interface > Interface type
union > Union type
enum > Enumerable type
input > Input object type
Enter fullscreen mode Exit fullscreen mode

标量类型

String - set of characters in UTF-8 format,
Int - 32-bit integer,
Float - floating point number,
Boolean - value true or false
ID - a type representing the unique identifier for the object.
Enter fullscreen mode Exit fullscreen mode

类型修饰符

String > Nullable string
String! > Required string
[String] > List of strings
[String]! > Required list of strings
[String!]! > Required list of required strings
Enter fullscreen mode Exit fullscreen mode

GraphQL模式示例

type Author {
  id: Int!
  firstName: String
  lastName: String
  """
  the list of Books by this author
  """
  books: [Book]
}
type Book {
  id: Int!
  title: String
  author: Author
  pages: Int
}
Enter fullscreen mode Exit fullscreen mode

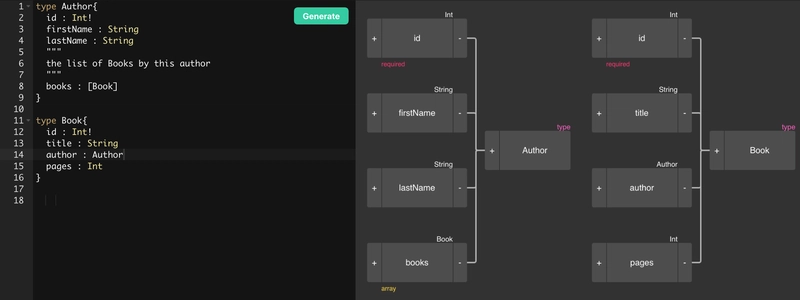

在我们的GraphQL 可视化编辑器中探索此示例

此模式允许以下查询：

type Query {
  book: [Book]
  author(id: Int!): Author
}
Enter fullscreen mode Exit fullscreen mode

输入参数

基本输入

type Root {
  users(limit: Int): [User]!
}
Enter fullscreen mode Exit fullscreen mode

输入默认值

type Root {
  users(limit: Int = 10): [User]!
}
Enter fullscreen mode Exit fullscreen mode

带多个参数的输入

type Root {
  users(limit: Int, sort: String): [User]!
}
Enter fullscreen mode Exit fullscreen mode

输入包含多个参数和默认值

type Root {
  users(limit: Int = 10, sort: String): [User]!
}
Enter fullscreen mode Exit fullscreen mode

或者

type Root {
  users(limit: Int, sort: String = "asc" ): [User]!
}
Enter fullscreen mode Exit fullscreen mode

接口

interface Publication {
  title: String!
  releasedDate: String!
}
type Magazine implements Publication {
  title: String!
  releasedDate: String!
  version: Int!
}
type Book implements Publication {
  title: String!
  releasedDate: String!
  pages: Int!
}
Enter fullscreen mode Exit fullscreen mode

工会

union SearchResult = Book | Author

type Query {
  search(text: String!): SearchResult
}

query {
  search(text: "Park") {
    ... on Book {
      title
    }
    ... on Author {
      name
    }
  }
}
Enter fullscreen mode Exit fullscreen mode

枚举

enum RGB {
  RED
  GREEN
  BLUE
}
type Root {
  color: RGB
}
Enter fullscreen mode Exit fullscreen mode

输入对象类型

input ListUsersInput {
  limit: Int
  since_id: ID
}
type Root {
  users(params: ListUsersInput): [Users]!
}
Enter fullscreen mode Exit fullscreen mode

如果您正在寻找最佳的GraphQL教程，请查看这篇文章。

文章来源：https://dev.to/iamrobert/graphql-tutorial-for-newbies---cheatsheet-gb5
